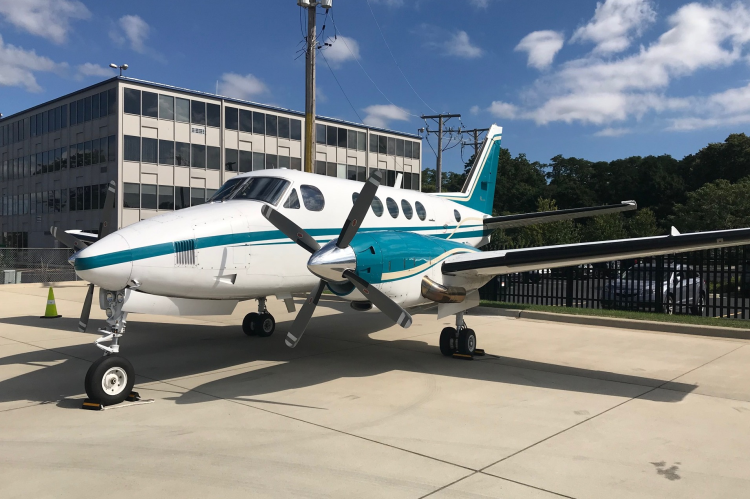

1977 King Air B100
Reg No. - N93D
Serial No. - BE-23
Airframe / Weights / Performance
Total Time - 12,467
Phase 1 and 2 due Jan 2020
No major damage history
Complete
11800.00 Lbs Max Ramp Weight
11210.00 Lbs Max Landing Weight
8060.00 Lbs Basic Operating Weight
4164.00 Lbs Useful Load
3149.00 Lbs Max Useable Fuel
Cruise Speed (KTAS)
- Max 3149.00
- Normal 270.00
- Long Range 250.00
Range NBAA (NM)
- Ferry Range 1257.00
Cost per NM: $
Engines & Props
Engines
-10AV Engine Conversion STC SA455CH-D
TPE331-10AV-511B
Left Engine 1598 SOH (SN P-102010C)
Right Engine 1598 SOH (SN P-120015C)
Propellers
HC-B4TN-5F/T10173ANB-12.5
Left Prop 944 SOH (SN CDA4454)
Right Prop 944 SOH (SN CDA4456)
Paint
Interior / Exterior Aesthetics
Interior
Completion: 2013
Aviation Interiors | Searcy, Arkansas (AR)
Details
Full interior including wood veneer and soft goods. Rated 8/10
Seating Details
4 place executive club, 2 place divan, single executive, side-facing potty seat, 2 crew. Forward cabinetry.

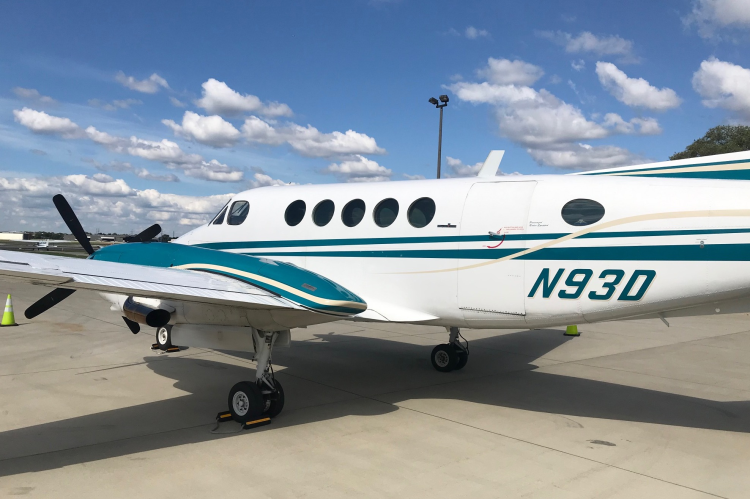

Exterior
Completion: 1992
Sky Harbor | , 6
Details
Rated 6/10

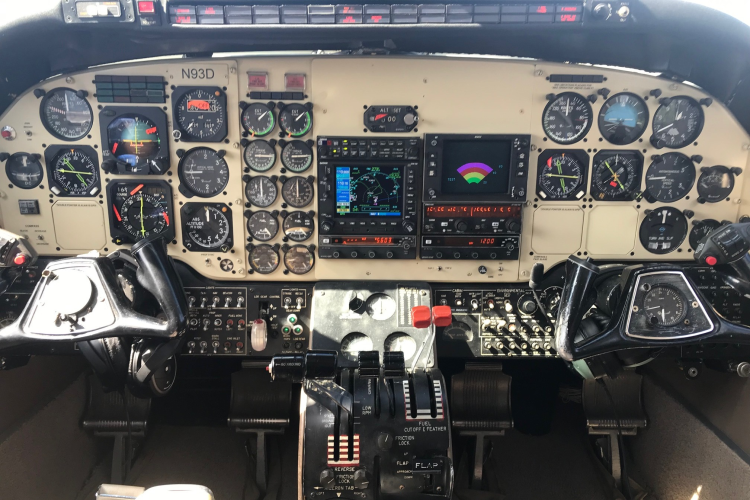

Avionics / Equipment / Features / Mods
Avionics & Equipment
- Garmin GPS-WAAS NAV/COM GNS 530W
- Garmin GPS-WAAS GA 35
- Garmin Audio Panel GMA 340
- Garmin Interface Adaptor GAD 42
- Garmin CM Weather Datalink Rec. GDL 69
- Garmin XM Antenna GA 55
- Bendix/King NAV/COM KX 155A
- Bendix/King NAV Converter KN 72
- Bendix/King Transponder KT 70
- Bendix/King Transponder KT 70
- Bendix/King DME Adaptor KA 120
- Sandia Relay AIS 240-35
- Lonestar Cooling Fan Cyclone 21
- TAWS8100 Processor 805-18650-001
- Processor mounting tray
- 67DC Terrain Data Card 805-1820-001
- GPS/WAAS 2101 Sensor 84100-02-0302
- GPS Antenna AT575-43
- Antenna Doubler
- Antenna cable
- Annunciation Control Unit MD41-1128
- Wiring harness
Additional Features & Mods
-
- - Raisbeck Engineering dual aft nacelle stowage compartments IAW STC SA3819NM
- - Two (2) lead/acid batteries IAW STC SA101850
- - RT-18
- - AT-461 Antenna
- - WH-5 handset
- - WH-18 handset
1977 King Air B100 with -10AV engine conversion. 12,467 total time, 13,893 total cycles. 1598 SOH.
